Daim Ntawv Qhia Kom Paub Txog Hlau Push Button Switch Specifications

A metal laub khawm hloovyog ib qho khoom siv electromechanical tsim los tswj cov kev khiav ntawm hluav taws xob hauv Circuit Court thaum qhib los ntawm lub cev xovxwm. Cov keyboards no paub txog lawv cov qauv tsim, ua haujlwm ntev, thiab kev zoo nkauj, ua rau lawv yog ib qho tseem ceeb hauv kev siv ntau hauv kev lag luam, kev lag luam, thiab cov khoom siv hluav taws xob.

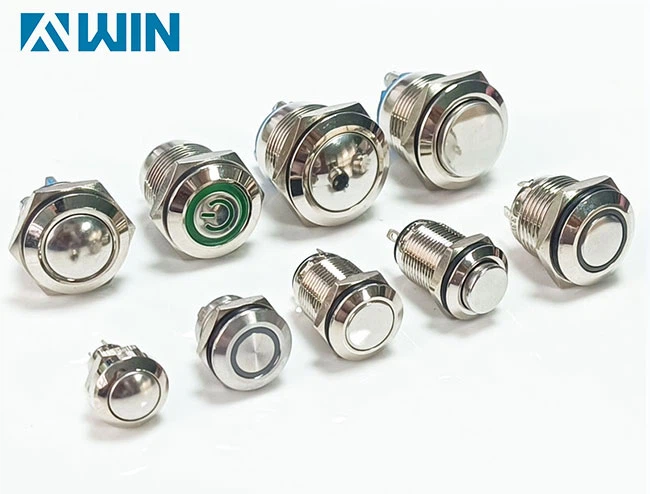

Txheej txheem cej luam ntawm Hlau Push Button Hloov

Hlau laub khawm keyboards yog tus cwj pwm los ntawm lawv cov vaj tse hlau ruaj khov, txhim khu kev qha hloov tshuab, thiab, feem ntau, kev sib xyaw ua ke zoo li LED teeb pom kev zoo. Lawv versatility thiab adaptability stems los ntawm ntau qhov ntau thiab tsawg, qauv, thiab hluav taws xob configurations muaj, kom ntseeg tau compatibility nrog txawv ib puag ncig thiab kev siv scenarios.

Cov yam ntxwv tseem ceeb ntawm Hlau Push Button Hloov

1. Kev tsim kho thiab cov khoom siv

Lub cim tseem ceeb ntawm lub khawm hlau khawm hloov yog nws cov kev tsim kho ruaj khov:

Hlau vaj tsev:Feem ntau ua los ntawm stainless hlau, tooj dag, los yog txhuas alloy, muab tshwj xeeb tsis kam rau hnav, corrosion, thiab mechanical puas.

Sealing Cheebtsam:Roj hmab lossis silicone gaskets tau muab tso ua ke kom ua tiav dej, plua plav, thiab noo noo tsis kam, qhov tseem ceeb rau kev siv sab nraum zoov lossis kev lag luam.

2. Hom Kev Ua Haujlwm

Hlau laub khawm keyboards tuaj nyob rau hauv ob lub ntsiab actuation hom:

Momentary:Qhov hloov pauv tsuas yog thaum raug nias thiab deactivates thaum tso tawm, feem ntau siv los pib dua khawm lossis horns.

Latching:Qhov hloov pauv nyob twj ywm hauv nws lub xeev tshiab (ON lossis OFF) tom qab raug nias, zoo tagnrho rau kev tswj fais fab lossis hloov ua haujlwm.

3. Teeb pom kev zoo

Ntau cov hlau laub khawm hloov tshiab niaj hnub muaj cov teeb pom kev zoo LED rau kev pom kev tawm tswv yim lossis tsim lub hom phiaj:

Integrated LEDs:Ib-xim, ob-xim, lossis RGB kev xaiv teeb pom kev zoo muab cov teebmeem teeb pom kev zoo.

Daim ntawv thov:Illumination tuaj yeem siv los qhia qhov hloov pauv qhov xwm txheej (piv txwv li, ON / OFF), txhim khu kev pom, lossis ntxiv qhov zoo nkauj kov.

4. Kev ntsuas hluav taws xob

Hlau laub khawm keyboards yog engineered rau ntau yam voltage thiab tam sim no kev ntaus nqi, los ntawm low-power signal circuits mus rau high-power industrial systems.

Kev ntsuas qhov ntsuas:

Cov teeb liab hloov pauv: 12V txog 24V, nrog rau kev ntsuas tam sim no hauv milliamps.

Fais fab hloov: Mus txog 250V AC lossis 30V DC, tuav tam sim no ntawm ntau lub amps.

5. Durability thiab Longevity

Cov keyboards no yog tsim los rau kev ua haujlwm dav dav, feem ntau ntsuas rau ntau lab ntawm kev ua haujlwm, ua rau lawv muaj kev ntseeg siab rau kev siv mus sij hawm ntev hauv qhov xav tau ib puag ncig.

Cov Qauv Txheej Txheem

Hlau laub khawm hloov muaj ntau yam tseem ceeb:

Actuator / Cap

Khoom siv:Stainless hlau los yog anodized txhuas rau hnav tsis kam.

Cov duab:Muaj nyob rau hauv tiaj tus, domed, los yog tsa cov profiles rau txawv ergonomic thiab zoo nkauj xav tau.

Kev ua haujlwm:Hloov cov neeg kho tshuab quab yuam mus rau sab hauv hloov mechanism.

Hloov Mechanism

Hloov cov tshuab xovxwm rau hauv lub teeb liab hluav taws xob.

suav nrog cov ntsiab lus sib txuas ua los ntawm cov khoom siv hluav taws xob xws li nyiaj lossis kub kom ntseeg tau tias tsis muaj kev tiv thaiv thiab kev ntseeg siab.

Muaj nyob rau hauv lub sijhawm luv lossis latching tsim, raws li daim ntawv thov xav tau.

Illumination System (Yeem)

LED qhov chaw:Ob leeg koom ua ke rau hauv lub actuator los yog nyob ib puag ncig nws hauv lub nplhaib translucent.

Voltage Compatibility:Ua haujlwm ntawm qhov ntsuas hluav taws xob, feem ntau 3V, 6V, 12V, lossis 24V.

Tsev

Tiv thaiv cov khoom sab hauv los ntawm kev puas tsuaj sab nraud thiab ib puag ncig.

Muab threaded los yog snap-haum tsim rau kev ruaj ntseg vaj huam sib luag mounting.

Terminals

Muab cov hluav taws xob sib txuas rau hauv Circuit Court.

Hom muaj xws li solder lugs, ntsia hlau terminals, thiab PCB pins.

Sealing Cheebtsam

Gaskets lossis O-rings txhim khu kev tiv thaiv plua plav, dej, thiab lwm yam kab mob.

Xyuas kom tus IP ntsuam xyuas, xws li IP65, IP67, lossis siab dua, siv rau sab nraum zoov lossis chaw ua haujlwm.

Specifications thiab Variants

1. Qhov ntau thiab tsawg

Hlau laub khawm keyboards tuaj nyob rau hauv ntau qhov ntau thiab tsawg kom haum rau cov kev siv sib txawv:

Standard Loj:Cov vaj huam sib luag feem ntau muaj xws li 12mm, 16mm, 19mm, 22mm, 25mm, thiab 30mm.

2. Hluav taws xob Configurations

Tiv tauj Forms:Ib-Pole Ib-Throw (SPST), Ib-Pole Ob-Throw (SPDT), thiab ntau dua.

Tam sim no / Voltage tuav:Tsim los rau ob qho tib si qis-voltage teeb liab tswj thiab high-tam sim no lub zog hluav taws xob circuits.

3. Mounting Options

Vaj Huam Sib Luag Mount:Threaded vaj tse rau kev ruaj ntseg installation.

PCB Mount:Terminals tsim rau kev sib koom ua ke ncaj qha rau hauv cov ntawv luam tawm Circuit Board.

4. Customizable Nta

Cov cim Actuator:Icons lossis ntawv nyeem (piv txwv li, ON / OFF, lub zog cim) tuaj yeem ua laser-etched lossis engraved.

Xim xaiv:LEDs thiab actuator nto tuaj yeem kho tau rau kev tsim khoom lossis kev ua haujlwm.

Kev siv ntawm Hlau Push Button Switches

Hlau laub khawm keyboards yog dav siv nyob rau hauv ntau yam lag luam vim lawv durability, kev cia siab, thiab versatility.

1. Muaj Automation

Siv rau lub tshuab pib / nres tswj, khawm nres xwm ceev, thiab tus neeg teb xov tooj cuam tshuam.

Rugged tsim withstands hnyav ib puag ncig nrog siab vibrations, plua plav, thiab ya raws.

2. Automotive

Pom nyob rau hauv dashboard tswj, qhov rooj xauv, thiab ignition systems.

LED illumination ua kom pom kev pom nyob rau hauv cov teeb pom kev tsawg.

3. Consumer Electronics

Feem ntau hauv cov khoom siv hauv tsev xws li kas fes tshuab, tshuab ntxhua khaub ncaws, thiab cov khoom siv ua si.

Sleek tsim thiab cov kev xaiv LED ntxiv rau kev zoo nkauj niaj hnub.

4. Cov khoom siv Marine thiab sab nraum zoov

IP-rated keyboards yog qhov zoo tagnrho rau kev tswj xyuas dej hiav txwv, sab nraum zoov kiosks, thiab huab cua-tshuaj.

5. Khoom siv kho mob

Siv rau hauv cov cuab yeej kuaj mob, saib xyuas, thiab cov cuab yeej phais kom tswj tau meej.

Qhov zoo ntawm Hlau Push Button Switches

Durability

Kev tsim kho hlau ruaj khov tiv taus hnav, corrosion, thiab cuam tshuam.

Haum rau ib puag ncig nrog cov av noo siab, plua plav, lossis raug tshuaj lom neeg.

Aesthetic Appeal

Sleek, niaj hnub tsim nrog kev xaiv LED illumination ntxiv rau kev saib zoo.

Ntau yam

Muaj nyob rau hauv ntau qhov ntau thiab tsawg, hom actuation, thiab hluav taws xob configurations.

Haum rau ntau yam kev lag luam thiab kev siv.

Yooj yim Installation

Threaded lub cev thiab standardized vaj huam sib luag cutouts yooj yim mounting.

Customization Options

Personalizable nta xws li actuator cim, LED xim, thiab tiav.

Kev sib tw thiab kev txiav txim siab

Nqi

Hlau laub khawm keyboards yog kim dua li yas counterparts.

Qhov hnyav

Hnyav dua li cov keyboards yas, uas tej zaum yuav yog ib qho kev txwv ntawm qhov hnyav-sensitive daim ntaub ntawv.

nyuaj

LED kev koom ua ke thiab kev sib khi yuav tsum ua kom muaj kev tsim qauv.

Kev sib haum xeeb

Xyuas kom muaj qhov ntsuas hluav taws xob zoo thiab qhov loj me rau cov ntawv thov tshwj xeeb.

Yav tom ntej Trends hauv Hlau Push Button Hloov Tsim

Txhim kho LED kev koom ua ke

Advanced LED tsim nrog dynamic RGB tswj rau ntau cov lus tawm tswv yim.

Ntse Hloov

Kev koom ua ke nrog IoT systems rau cov chaw taws teeb tswj thiab saib xyuas.

Eco-phooj ywg cov ntaub ntawv

Kev siv cov khoom siv ruaj khov thiab rov ua dua tshiab rau cov ntawv thov ib puag ncig.

Miniaturization

Compact tsim rau qhov chaw txwv tsis pub siv hauv cov khoom siv hluav taws xob thiab khoom siv kho mob.

Hlau laub khawm keyboards yog lub hauv paus ntawm cov txheej txheem tswj niaj hnub, muab kev ntseeg siab tsis sib xws, kev ua haujlwm, thiab tsim qauv yooj yim. Lawv cov kev tsim kho muaj zog thiab cov yam ntxwv kho tau ua rau lawv yog qhov kev xaiv zoo tshaj plaws rau kev thov kev thov, kom ntseeg tau tias lawv tseem yog ib feem tseem ceeb hauv kev lag luam ntau xyoo tom ntej.
